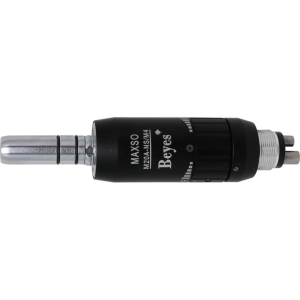

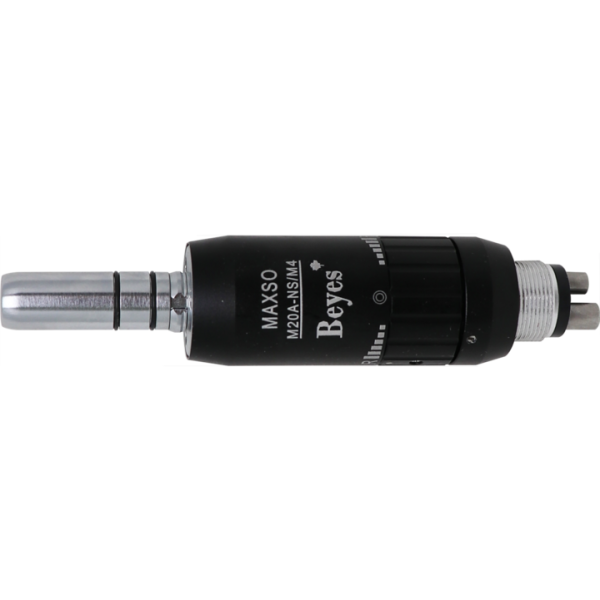

Maxso Motor-Smart-Midwest 4 Hole-Code: Mt2010

Product Code / ID

01-BST

01-BST / 32329

Ships by BEST INSTRUMENTS, USA within 5 to 10 business days

Regular Price:
$248.99
VIP members save up to 50%
Join VIP Now

The M20A Motor offers efficient, powerful and constant torque with operational speeds up to 20,000 RPM. Its innovative fluid dynamics generate about twice as much torque compared to a conventional low speed motor in the 5,000–10,000 RPM range. The M20A Motor is comfortable to operate – it is lightweight, perfectly balanced and delivers smooth power control.



  • Powerful torque even at a low speed
  • Long working life
  • Perfectly balanced, lightweight design
  • Forward/reverse drive with continuous speed control
  • Safe and easy double-lock connection
  • Autoclavable for complete infection control

Compatible with all standard ISO-type attachments

Maximum speed5,000 rpm – 20,000 rpm
Air Pressure Range0.2-0.3 MPa
Exhaust Pressures Recommended0.07 MPa, max. *0.25 MPa
Recommended Air Pressure Range0.25 MPa
Water Pressure Range0.05-0.2 MPa
Usage Speed Range5,000-20,000 rpm
Air Flow (At 0.25MPa)46 NL/min
Stop Torque (At 0.25MPa)3.5 N cm



Code: MT2010

Model: M20A-NS/M4

Connection: Midwest 4 Hole Connection

Description: Air Motor, No Spray, 20k

OTHER CATEGORY ALSO AVAILABLE

BACKEND                   CODE

 Borden 2 Hole           MT2011
