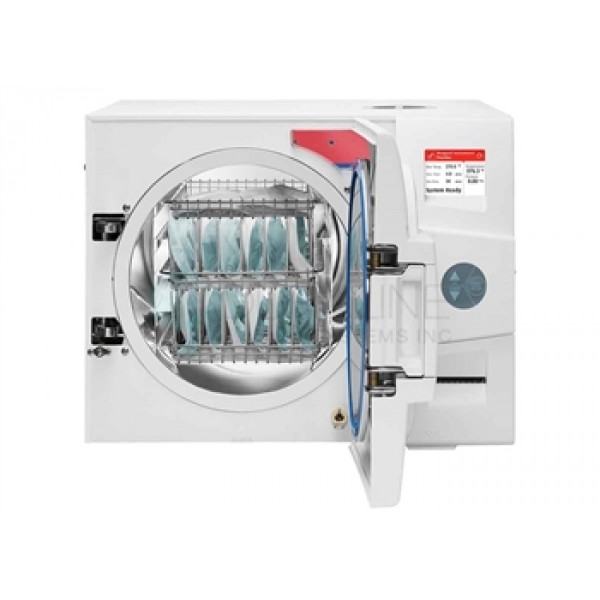

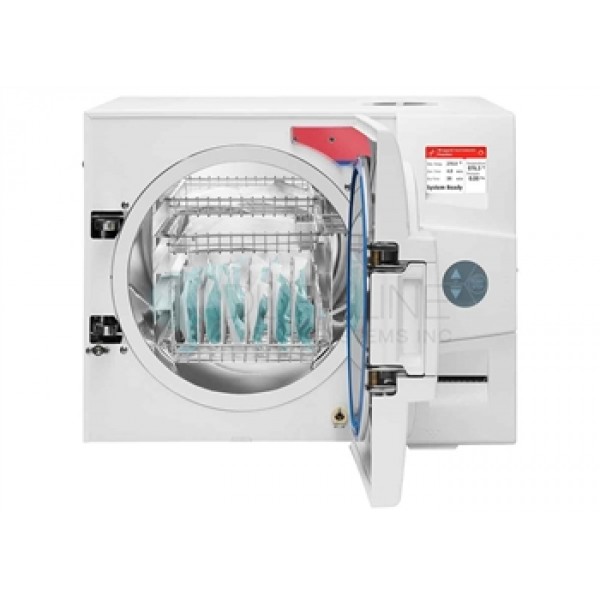

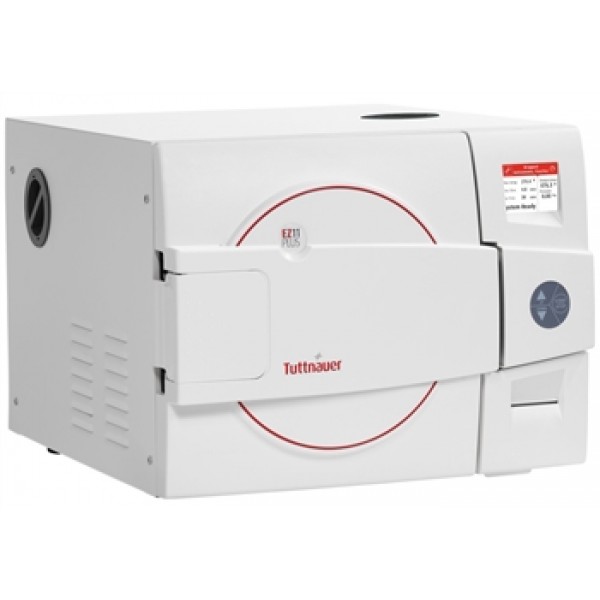

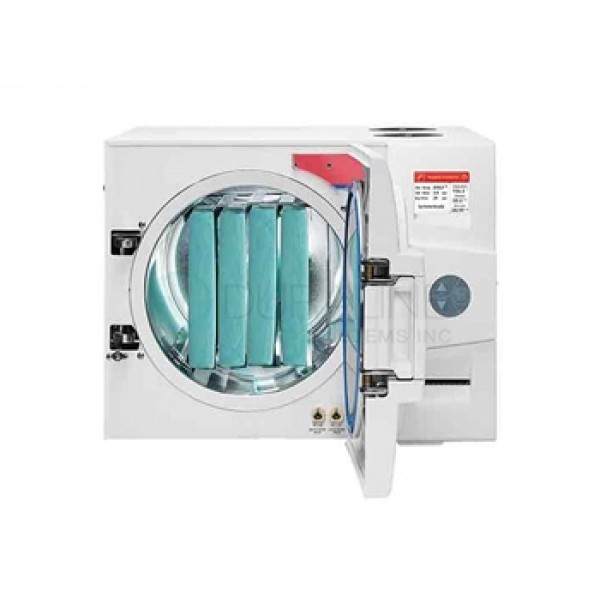

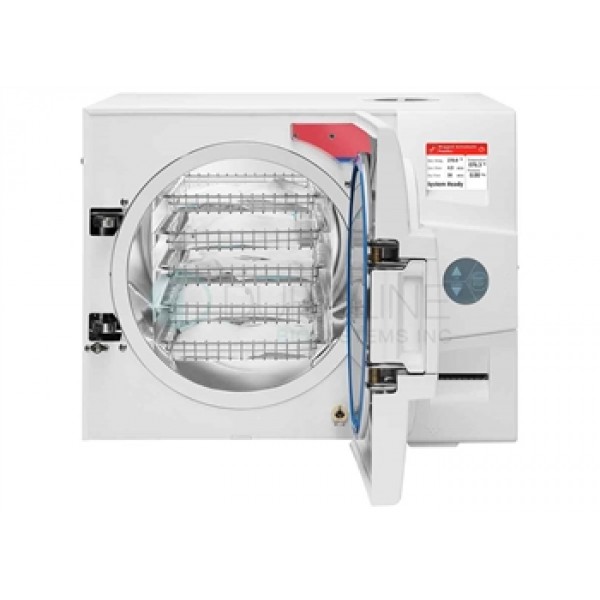

Tuttnauer EZ11Plus Autoclave Steam Sterilizer
WARRANTY: 24 months parts and labor
The EZPlus Series offers all of the benefits of the EZ Series: closed door drying, exceptionally deep chamber, a comprehensive 2 year parts & labor warranty, and ease of use. The EZPlus Series expands on these features and offers a newly designed EZGlide door, an innovative EZView multi-color display, front and top water filling, a USB port and a network port. Features 11" x 19.8" chamber.
Features:
* Models EZ9Plus and EZ11Plus require a minimum tabletop depth of 22”
**Standard full size cassette is 8” x 11” and standard half size cassette is 8” x 5.5”
Sterilization Programs | Temp. | Hot Cycle Time (fill, heat up & vent) |
Sterilization Time | Dry Time | Total Hot Cycle Time (without dry) |
Total Hot Cycle Time (with dry) | |
Description | Icon | ||||||
Unwrapped Instruments | 270° F | 24 min | 3 min | 1 min | 27 min | 28 min | |
Wrapped Instruments, Pouches | 270° F | 21 min | 4 min | 30 min | 25 min | 55 min | |
Unwrapped Delicate Instruments | 250° F | 19 min | 30 min | 1 min | 49 min | 50 min | |
Handpieces | 270° F | 26 min | 4 min | 30 min | 30 min | 60 min | |
Chamber Brite Cleaning | 270° F | 20 min | 3 min | N/A | 23 min | N/A | |
Custom A** | 270° F | 22 min | 4 min | 30 min | 26 min | 56 min | |
Custom B** | > | 250° F | 16 min | 30 min | 1 min | 46 min | 47 min |
* Operator has the option to add additional drying time.
** Custom A and Custom B programs are not FDA cleared. It is the user’s responsibility to validate any Custom cycles.
NOTE: cycle times are approximate and may vary depending on instrument loads.
The EZPlus Series meets established international standards and specifications:
USA Standards: ANSI/AAMI ST55:2010, ASME Sec. VIII. Div 1, UL 61010-1, UL 61010-2-040, FDA 510(K) Cleared, ISO 17665-1:2006.
The Quality System complies with ISO 13485:2003 and ISO 9001:2008 Canada Standards: CMDR
EU Standards: EN 13060:2004 + A2:2010, EN 61010-1, EN 61010-2-040,EN 61326-1.Complying with MDD 93/42/EEC, PED 97/23/EC, RoHS & WEEE compliance, EN 60529 (IP31)
