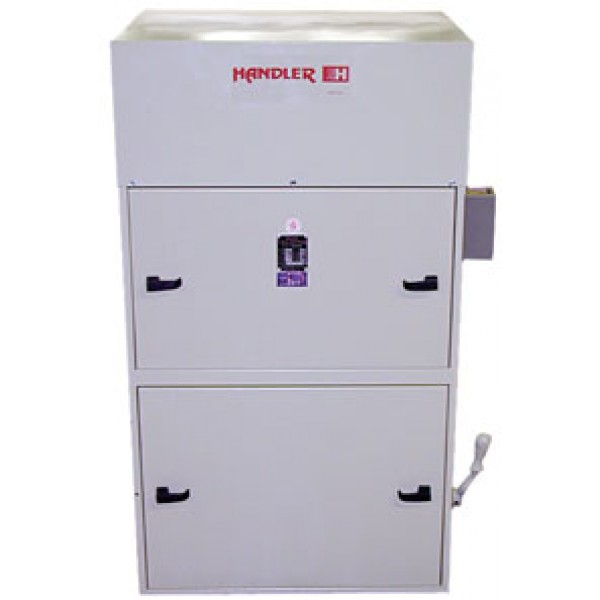

A 3/4HP suction unit designed to provide suction for up to 3 work positions,simultaneously. Powered by a ball bearing, capacitor start, industrially rated brushless motor, the model 77 provides cost effective dust extraction with a state of the art drum cartridge filter technology which collect particles as small as ½ microns.
The 77 dust collector generates 600CFM (cubic feet per minute) through the inlets provided. The unit is finished in a baked, durable coating, runs on 115V/60HZ and ships complete with switch and box type silencer.
Shipping weight: 240 lbs. [108.9 kg]
Unit dimensions: 24” W x 20” D x 38 ½” H [61cm x 51cm x 98cm]
Available with 24 cloth filter bags.
Suction Inlets : Four 3” (7.6cm) flanges – two mounted on each side of unit
C.F.M. : 600 C.F.M.
Filtration : Two drum cartridge filters provide superior filtration for all lab applications
Replacement filters : Order 60FC filters, quantity 2
Available in 115V/60Hz, 230V/50Hz, 230V/60Hz and 115V/50Hz.
Available with polyester bags for use with aluminum oxide, at additional cost. Note: with 2-Fishmout 2-4’ Pc Hose
A necessary accessory for the 60U Dust Collector, The 60 U/S silencer mounts on top of the 60U and lowers the airflow noise level approximately 20%-25%. Constructed of sheet steel and lined with acoustical foam to reduce noise level of 60U. A must for quiet offices and labs.
Shipping Weight: 5 lbs [2.3 Kg]
Unit Dimensions: 15 1/4” wide x 11 1/2” deep x 3” high [38.7cm x 29.2cm x 7.6cm]
